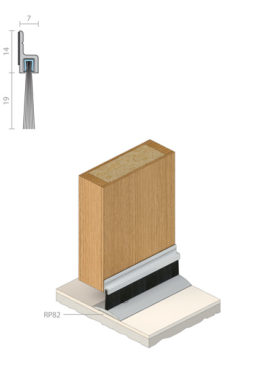

A nylon brush strip seal with an anodised aluminium carrier that mounts to the inside or outside of a door. It is ideal for sliding or double acting doors.
Can be concealed inside of an aluminium door suite bottom rail by the fabricator.
Used in conjunction with Raven threshold plates.
Location: Bottom of single, double, sliding and double acting doors.
Min/Max Gap: Up to 19mm (user determined).
Finish: Satin clear (silver), bronze anodised aluminium

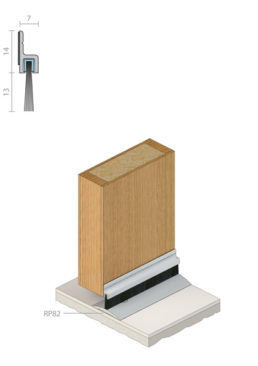

A nylon brush strip seal with an anodised aluminium carrier that mounts to the inside or outside of a door.
Used in conjunction with Raven threshold plates.
Location: Bottom of single, double or sliding doors.
Min/Max Gap: Up to 13mm (user determined).
Finish: Satin clear (silver), bronze anodised aluminium (15µm) or paint at extra cost.
Fixing: Self adhesive or can be screw fixed. Note: Contact surface must be clean, smooth and if painted, well cured. Self adhesive seals will not adhere to oiled or alkyd finishes or to easy clean wash and wear paint surfaces.
Seal: Black fine, dense, UV stabilised nylon filaments.
Sizes: Available in stock lengths.
I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

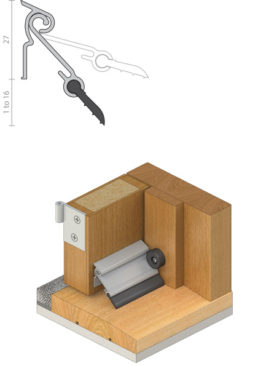

A cam activated, lifting action, automatic door bottom seal. It is quick and easy to install without cutting or removing the door and uses concealed fasteners. This DIY product has been granted an Australian Design Award. Ideal for residential and light commercial applications such as motels and retirement villages.
Can be used in conjunction with Raven threshold plates.
Location: Bottom of single inward opening butt hinged doors.
Min/Max Gap: 1mm to 16mm.
Finish: Satin clear (silver), bronze or bright gold anodised aluminium (15µm).
A cam activated, lifting action, automatic door bottom seal. It is quick and easy to install without cutting or removing the door and uses concealed fasteners. This DIY product has been granted an Australian Design Award. Ideal for residential and light commercial applications such as motels and retirement villages.
Can be used in conjunction with Raven threshold plates.
Location: Bottom of single inward opening butt hinged doors.
Min/Max Gap: 1mm to 16mm.
Finish: Satin clear (silver), bronze or bright gold anodised aluminium (15µm).

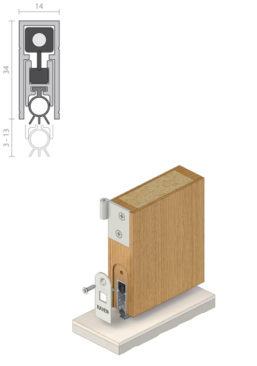

A concealed, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. It is acoustically designed, featuring silicon gaskets for medium temperature smoke and fire door applications. Operated automatically by pressure against the door jamb on its adjustable strike. RP8Si can also be fitted into the bottom rail of a metal door by the fabricator. Has a level adjustment to achieve an optimum seal.
Location: Fully morticed into a 15mm x 34mm groove into the bottom of single and double butt hinged timber and metal doors.
Min/Max Gap: 3mm to 13mm.
Finish: Satin clear (silver), bronze or black anodised aluminium (15µm).

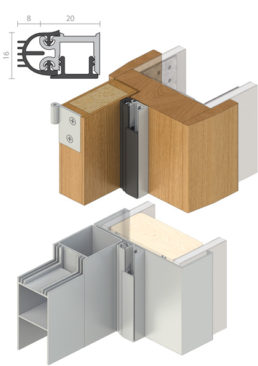

An effective acoustic and smoke door stop frame seal which is quick and easy to install on plain or rebated door frames. Multi-fin design for improved noise and energy sealing. The minimum deflection design creates maximum sealing efficiency.
RP10Si can be mitred or butt jointed for a neat finish. Adjustable by large concealed fixing slots for a precision fit, RP10Si has a tamper resistant, rigid PVC cover strip (SE). Can be used on all four sides of the door to form a bulk head seal.
Note: If fixing to rebated frames of single doors, specify a long backset door latch.
Location: Head and jambs of single and double butt hinged doors.
Min/Max Gap: 0mm to 10mm.
Finish: Satin clear (silver), bronze

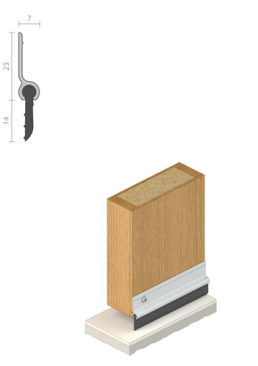

A heavy duty sweep seal for door bottoms of outward opening doors. Slotted fixing holes allow for adjustment all concealed behind a push in cover strip.
The RP26 is ideal for use in conjunction with Raven threshold plates.
Location: Bottom of single and double, outward opening, butt hinged doors, tilt up doors or can be used as an astragal seal.
Min/Max Gap: 5mm to 20mm (user determined).
Finish: Satin clear (silver), bronze anodised

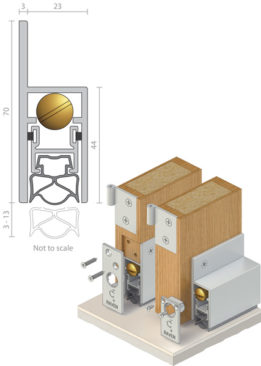

A heavy duty, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. It is self levelling and reversible for left and right handed operation. Acoustically designed, it features a silicon gasket for medium temperature smoke and fire door applications. Doubles as a kick plate when semi-morticed. Operated automatically by pressure against the door jamb or stop on its adjustable brass strike.
Location: Face mounted or semi-morticed into bottom of single and double butt hinged doors. For semi-mortice minimum door thickness of 50mm for rebated meeting stiles and 40mm for plain meeting stiles is required. Can be face mounted to the bottom of metal doors.
Min/Max Gap: 3mm to 13mm.
Finish: Satin clear (silver), bronze anodised

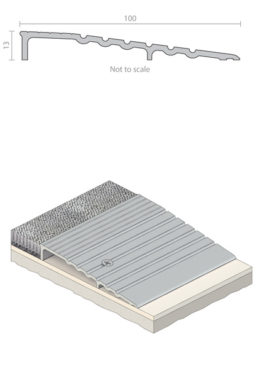

A heavy duty threshold ramp with a ribbed design which can be positioned back to back to form a two way threshold ramp conforming to NCC Pt. D2.15 Thresholds (b).
Can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration. Suitable for use with most floor pivots.
Ideal for commercial shop fronts providing a neat ramp detail between carpets or tiles at door ways.
Can also be used to provide a ramped frame for internal door mats.
Location: Door sill.
Finish: Satin clear (silver) or bronze anodised aluminium (25µm).

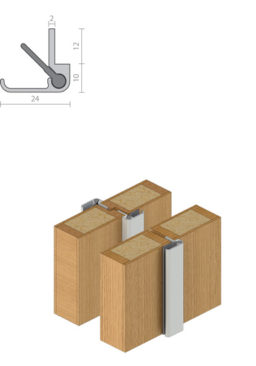

RP16Si is an acoustic, smoke astragal. Its proven design is effective in sealing the meeting stiles of plain or rebated double doors. Its aluminium trim neatly conceals the sealing portion of the seal and provides a secure weatherproof rebate stop. If necessary, its aluminium fixing leg can be checked out to allow for locks and latches.
For maximum acoustic performance, specify two seals, i.e. one for each door leaf. (Minimum door thickness subject to centre latch and dimensions of morticed door bottom seals).
RP16Si is used where one door leaf is active. For smoke door magnetic hold open applications such as hospital corridors, sequence select door closers are required.
Location: Meeting stiles of double butt hinged doors.
Min/Max Gap: 2.5mm to 8mm.
Finish: Satin clear (silver), bronze
A rigid and flexible co-polymer weather and energy seal. RP89 suits leading proprietary brand, hollow channel aluminium door suites. Concealed in the bottom of aluminium butt hinged doors or the bottom and head of pivot doors, RP89’s unique design accommodates OEM and retrofit applications.
When used in conjunction with a Raven threshold plate an excellent weather and energy seal is achieved.
Location: Bottom or top of 40-45mm hollow channel aluminium doors. Suits butt hinged and pivot hinged systems. Sliding doors (user determined).
Min/Max Gap: 6mm to 9mm.
Note: A Raven threshold plate is recommended to clear floor surface.
Fixing: Snap fit design with end support lugs and screws supplied.
Seal: Black rigid and grey flexible UV stabilised co-polymer.

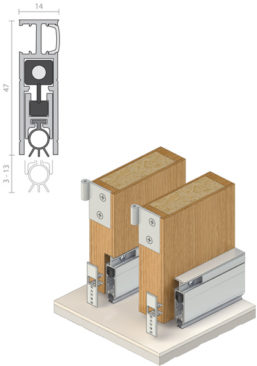

An adjustable, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. It is acoustically designed, featuring silicon gaskets for medium temperature smoke and fire door applications. Operated automatically by pressure against the door jamb or stop on its adjustable strike.
Location: Face mounted or semi-morticed into the bottom of solid core single and double butt hinged doors. The RP35Si can also be face mounted to the bottom of metal doors.
Min/Max Gap: 3mm to 13mm.
Finish: Satin clear (silver) or bronze anodised aluminium (15µm).
Fixing: Concealed screw fix. Zinc plated, cross recess head S.T. screws, colour matched escutcheon plates and cover strip supplied. Fixing holes are pre-slotted.
Seal: RP308Si. Grey silicon rubber (SE).
Sizes: 1220mm, 1070mm, 920mm, 820mm, 600mm, 380mm to 295mm(min). Seals cut back to exact size
