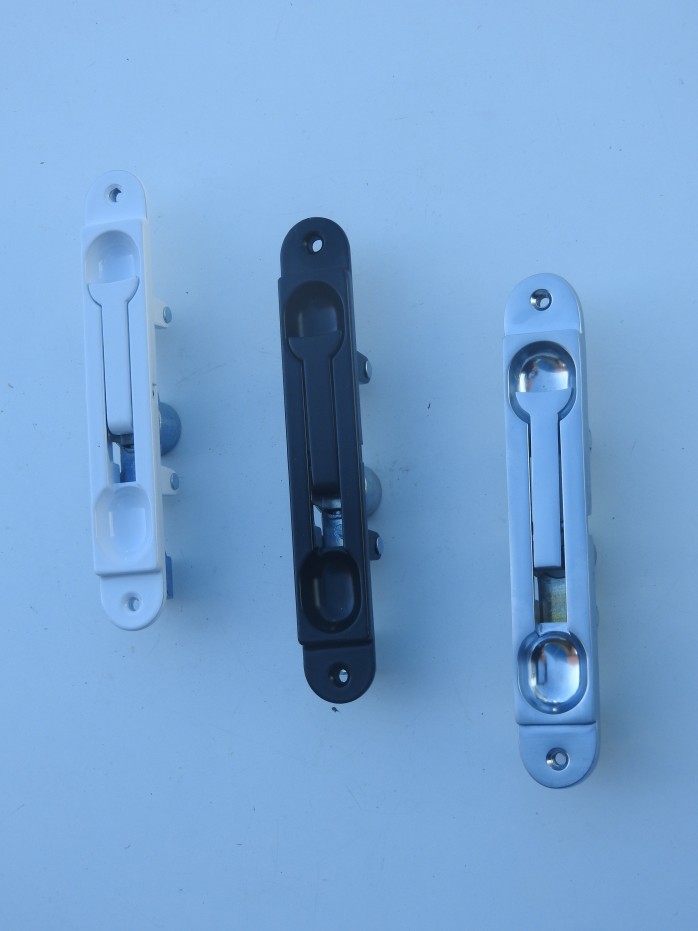

Available in SCP, Black & White

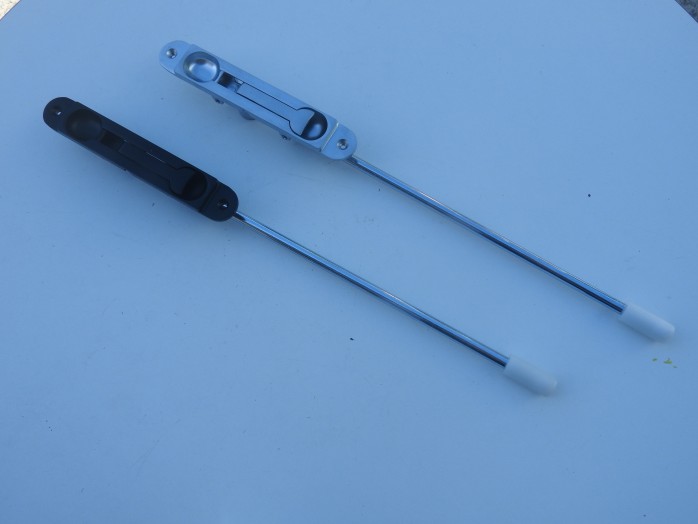

Ryobi Flush Bolts
Black & SCP
Application

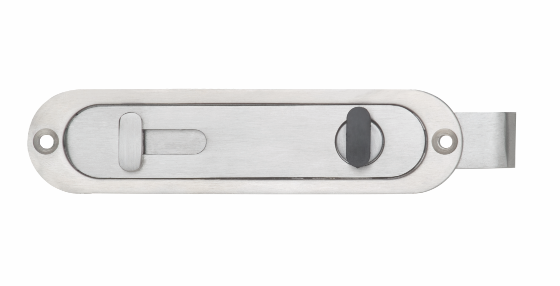

The 512 is a fully stainless steel flush bolt, designed specifically for aluminium folding door applications using Weatherfold 4s hardware. The offset rod aligns with the concealed channel and passes the head track of the Weatherfold 4s systems. The innovative design of the 512 offers a low air infiltration and water ingress making it ideal for windows and doors. In addition, the 316 stainless steel construction provides high corrosion resistance, even in coastal locations.
Specification:
Min door thickness: 35mm
Flush Bolt lengths: 400mm, 600mm and 900mm
Throw length: 20mm
Security: Locking and non-locking
Finishes: Satin Stainless Steel (SS)

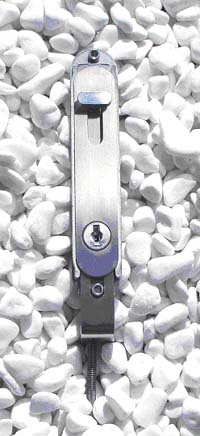

512SS and 512ESS Flush Bolts - Suitable for Aluminium Doors
Brio is one of the most influential hardware suppliers of Folding Door hardware with Weatherfold Coastal leading the way in innovation and performance.
The market for Folding Doors appears to be as strong as ever with more window manufacturers entering this sector including many from the aluminium side of the industry. Weatherfold Coastal is suitable for both timber and aluminium but in the case of aluminium Brio was unable, until now, to offer the complete hardware package.
The new 512SS and 512ESS flush bolts have been designed specifically for the aluminium sector and completes the Weatherfold Coastal package.
The Brio 512 is the only cast 316 stainless steel flush bolt on the market available in locking and non locking form.
It utilises the keying and design features from the 456 timber door products to retain the style and appearance of the Brio flush bolt range.
The product is available in three lengths, 400mm 600mm and 900mm. The various lengths of tie rods position the operating knob at the above mentioned distances from the edge of the door.
Fitting the product is very simple. The new flush bolt is fitted from the inside of the aluminium section to minimise the amount the product protrudes from the surface. The cap supplied to guide and hold the tie rod is designed around a commercial 45mm door stile that can vary anything up to 3mm wall thickness.
The new 512SS and 512ESS are available in Satin Stainless with other finishes to follow as the product grows in popularity. It is worth noting that unlike the common lever type that has to be powder coated to provide protection to the zinc die casting the Brio 512 is made from stainless steel that does not require powder coated
The offset tie rod and square tip of the 512 is designed around the channel and track position of Weatherfold Coastal. By rotating the tie rod it is possible to position the square tip to fit directly into the channel under the door or align it adjacent to the top track. The benefit of this design is one bolt does all, inward and outward openings without the need for keepers.
In addition to achieving its original design brief that being to accommodate folding door systems the 512 is well suited for the general market and can successfully be used on Swing and French doors. Each flush bolt kit is supplied with a nylon keeper to dress and seal the hole required in the top and bottom sections.
Unlike the lever type flush bolt which is prone to working loose, the 512 has a square tip that stops the tie rod from rotating once the door stile cap is fitted. Adjustment of the tie rod is simple and effective, set the tip flush with the edge of the door when the shoot bolt is full retracted. To secure the tie rod simply insert the stile cap and gently tap in place. The cap is designed with an interference fit.
