Hinges

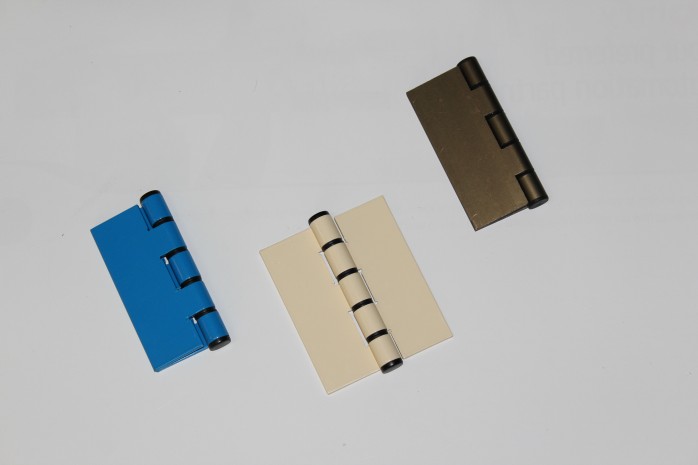

HI-1

100mm x 100mm Butt Hinge No Holes

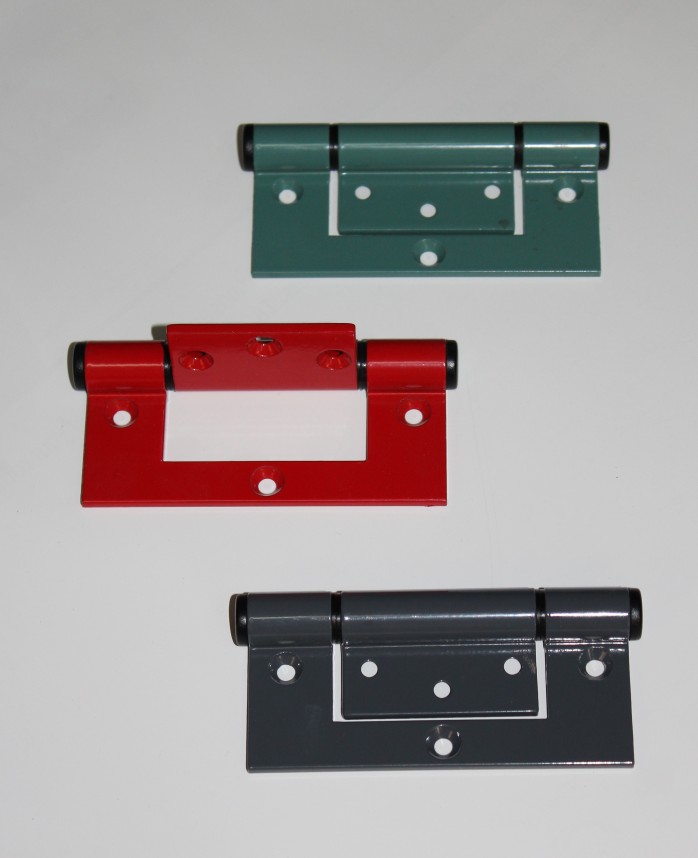

HI-3

Quick fix extruded single leaf hinge.
4mm Tapered leaf (100mm x 50mm)

stainless steel quick fix hinges

Hi -78B    100mm x 75mm suit aluminium

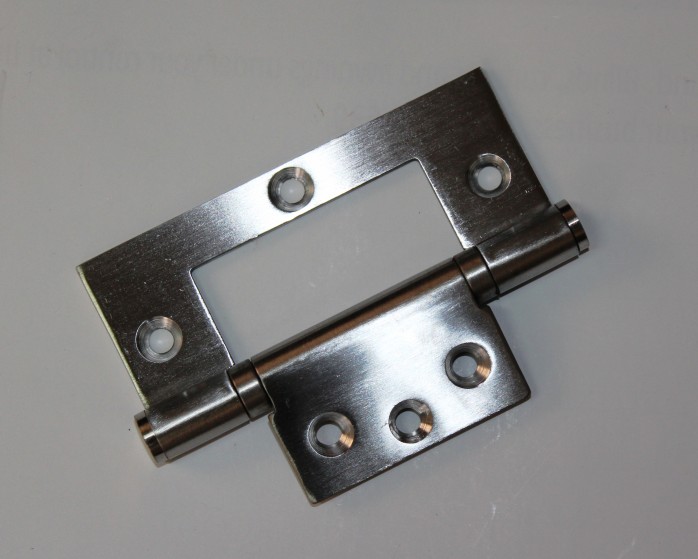

Hi-78T     100mm x 75mm suit timber

Hi -79B    100mm x 75mm suit aluminium 316Grade SSS

Hi-79T     100mm x 75mm suit timber 316Grade SSS

HI-8588

100mm x 75mm Butt Hinge

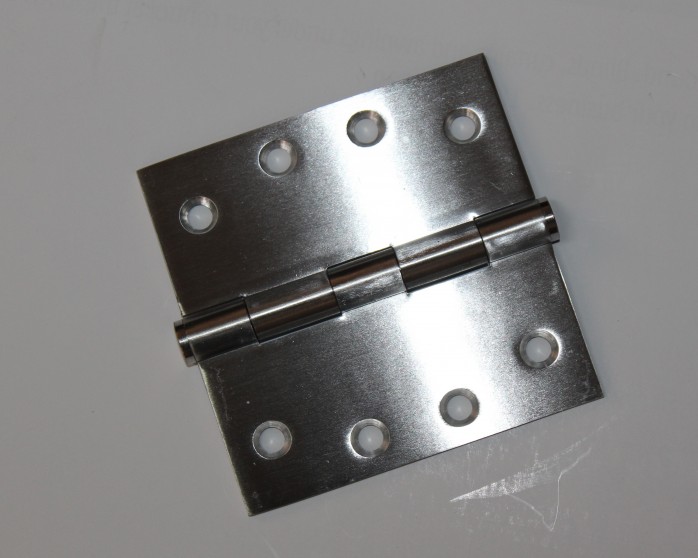

stainless steel broad butt hinges

Hi-89    100mm x 100mm

Hi-90    100mm x 125mm

Hi-91    100mm x 175mm

Hi-92   100mm x 200mm

w384304

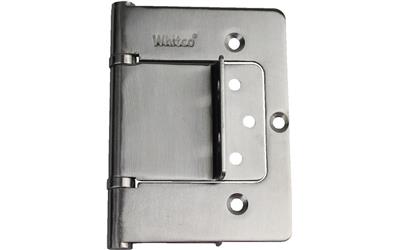

Whitco Timber Door Parliament Hinge
W3843041x Hinge

Features:
3 hole 90mm offset hinge
Stainless steel

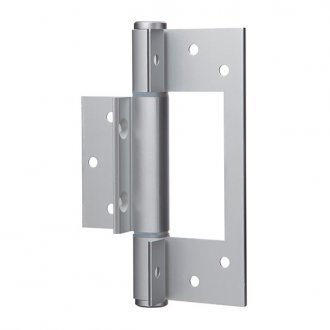

hi -104 hinges

Features

  • heavy duty aluminium fastfix hinge
  • suitable for aluminium entrance doors in high usage areas
  • can be used with or without a closer
  • suitable for either centre pocket or front edge glazing systems
  • measures 130 mm x 40 mm x 3.4 mm
  • 6 mm stainless steel pin with machined chamfered ends
  • flanged nylon bushes
  • square line knuckle
  • two directional fixing
  • for doors up to 2000 (h) x 900 (w) x 100 kg use 2 hinges
  • for doors over 2000 (h) x 900 (w) x 100 kg use 3 hinges
