Lockwood Lever Handle Furniture

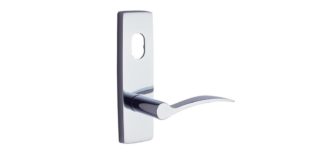

LOCKWOOD 4800 SERIES NARROW STILE PLATE FURNITURE

A slim-line, rectangular brass plate that adds style to your choice of lever.

Designed for use with Lockwood 3770/3570 Series Mortice Latches (4600/4700) and 3780/3580 Series Mortice Latches (4800/4900 Series).  Additionally there are functions that are designed to work with Lockwood 3540 Series short backset mortice deadbolts.

The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the Lockwood brass door range has evolved as the product of choice for leading Australian architects in commercial, institutional and industrial applications.

Fixing
Plates are designed to fit back to back.
If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Door Thickness
Fixing screws to suit door thickness between 32 and 50mm. For thicker doors longer screws and spindles are available on application.

Standard Finishes

  • Chrome Plate CP
  • Polished Brass PB
  • Satin Chrome SC

Dimensions

Trade Pack

4600/4700 & 4800/4900 Series

DescriptionPart NumberPart Number
 3770/3570 Series3780/3580 Series
External Plate with Cyl Hole (Con. Fix), No Lever4600SC4800SC
Internal Plate with Cyl Hole (Vis. Fix), No Lever4700SC4900SC
External Plate with Cyl Hole (Con. Fix), Solid Brass Lever4601/70SC4801/70SC
Internal Plate with Cyl Hole (Vis. Fix), Solid Brass Lever4701/70SC4901/70SC
External Plate with Emergency Turn (Con. Fix), No Lever4602SC4802SC
External Plate with Emergency Turn (Con. Fix), Solid Brass Lever4603/70SC4803/70SC
Internal Plate with Oval T/Knob (Vis. Fix), Solid Brass Lever4704/70SC4904/70SC
External Plain Plate (Con. Fix), Solid Brass Lever4805/70SC4805/70SC
Internal Plain Plate (Vis. Fix), Solid Brass Lever4905/70SC4905/70SC
Internal Plate with Oval T/Knob (Vis. Fix), No Lever4706SC4906SC
External Plain Plate (Con. Fix), No Lever4807SC4807SC
Internal Plain Plate (Vis. Fix), No Lever4907SC4907SC
External Plate with Cyl Hole (Con. Fix) & Fixed Lever4608/70LSC4808/70LSC
Internal Plate with Cyl Hole (Vis. Fix) & Fixed Lever4708/70LSC4908/70LSC
External Plain Plate (Con. Fix) & Fixed Lever4609/70LSC4809/70LSC
Internal Plain Plate (Vis. Fix) & Fixed Lever4709/70LSC4909/70LSC
External Plate with Two Cyl Holes (Con. Fix) 4810SC
Internal Plate with Two Cyl Hoes (Vis. Fix) 4910SC
External Plate with Cyl Hole & L.E.D (Con. Fix), Solid Brass Lever4620/70SC4820/70SC
Internal Plate with Cyl Hole & L.E.D (Vis. Fix), Solid Brass Lever4720/70SC4920/70SC
External Plate with L.E.D (Con. Fix), Solid Brass Lever4622/70SC4822/70SC
Internal Plate with L.E.D (Vis. Fix), Solid Brass Lever4722/70SC4922/70SC
External Plate with L.E.D (Con. Fix), No Lever4623SC4823SC
Internal Plate with Disabled Accessible Turn (Vis. Fix), Solid Brass Lever4739/70SC4939/70SC




3540 Series

Internal Plain Plate (Vis. Fix) to Suit 3540 Series, 90 Degree Solid Brass Lever  4980/70SC
Internal Plain Plate (Vis. Fix) to Suit 3540 Series, 45 Degree Solid Brass Lever  4981/70SC

Fixing

Plates are designed to fit back to back.
If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Door Thickness
Fixing screws to suit door thickness between 32 and 50mm. For thicker doors longer screws and spindles are available on application.

Standard Finishes

  • Chrome Plate CP
  • Polished Brass PB
  • Satin Chrome SC

Dimensions

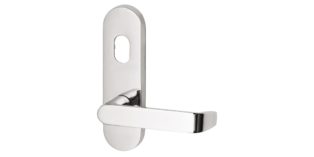

LOCKWOOD 5800 SERIES NARROW STILE PLATE FURNITURE

Functional, yet elegant, the soft lines of this round-ended brass plate complement a wide range of levers.

Designed for use with Lockwood 3770/3570 Series Mortice Latches (5600/5700 Series) and 3780/3580 Series Mortice Latches (5800/5900).  Additionally there are functions that are designed to work with Lockwood 3540 Series short backset mortice deadbolts.

The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the Lockwood brass door range has evolved as the product of choice for leading Australian architects in commercial, institutional and industrial applications.

Trade Pack

5600/5700 & 5800/5900 Series

DescriptionPart NumberPart Number
 3770/3570 Series3780/3580 Series
External Plate with Cyl Hole (Con. Fix), No Lever5600SC5800SC
Internal Plate with Cyl Hole (Vis. Fix), No Lever5700SC5900SC
External Plate with Cyl Hole (Con. Fix), Solid Brass Lever5601/70SC5801/70SC
Internal Plate with Cyl Hole (Vis. Fix), Solid Brass Lever5701/70SC5901/70SC
External Plate with Emergency Turn (Con. Fix), No Lever5602SC5802SC
External Plate with Emergency Turn (Con. Fix), Solid Brass Lever5603/70SC5803/70SC
Internal Plate with Oval T/Knob (Vis. Fix), Solid Brass Lever5704/70SC5904/70SC
External Plain Plate (Con. Fix), Solid Brass Lever5805/70SC5805/70SC
Internal Plain Plate (Vis. Fix), Solid Brass Lever5905/70SC5905/70SC
Internal Plate with Oval T/Knob (Vis. Fix), No Lever5706SC5906SC
External Plain Plate (Con. Fix), No Lever5807SC5807SC
Internal Plain Plate (Vis. Fix), No Lever5907SC5907SC
External Plate with Cyl Hole (Con. Fix) & Fixed Lever5608/70LSC5808/70LSC
Internal Plate with Cyl Hole (Vis. Fix) & Fixed Lever5708/70LSC5908/70LSC
External Plain Plate (Con. Fix) & Fixed Lever5609/70LSC5809/70LSC
Internal Plain Plate (Vis. Fix) & Fixed Lever5709/70LSC5909/70LSC
External Plate with Two Cyl Holes (Con. Fix)5810SC
Internal Plate with Two Cyl Hoes (Vis. Fix)5910SC
External Plate with Cyl Hole & L.E.D (Con. Fix), Solid Brass Lever5620/70SC5820/70SC
Internal Plate with Cyl Hole & L.E.D (Vis. Fix), Solid Brass Lever5720/70SC5920/70SC
External Plate with L.E.D (Con. Fix), Solid Brass Lever5622/70SC5822/70SC
Internal Plate with L.E.D (Vis. Fix), Solid Brass Lever5722/70SC5922/70SC
External Plate with L.E.D (Con. Fix), No Lever5623SC5823SC
Internal Plate with Disabled Accessible Turn (Vis. Fix), Solid Brass Lever5739/70SC5939/70SC




3540 Series

Internal Plain Plate (Vis. Fix) to Suit 3540 Series, 90 Degree Solid Brass Lever 5980/70SC
Internal Plain Plate (Vis. Fix) to Suit 3540 Series, 45 Degree Solid Brass Lever 5981/70SC

Handing
Plates are not handed; Symmetrical levers may be reversed by removing stop screw.

Fixing
Plates are designed to fit back to back.
If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Door Thickness
External plates are supplied with fixing screws to suit door thickness between 32 and 50mm.

Finishes

Standard

  • Satin Chrome Brushed SC

Non Standard

  • Chrome Plate CP
  • Polished Brass PB
  • Polyester Powdercoat PPC

Other finishes on application.

Dimensions

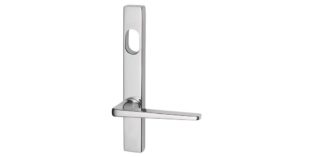

LOCKWOOD 1800 SERIES SQUARE END PLATE DOOR FURNITURE

Style and versatility are combined in this range which comprises four architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application.

Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice.

The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the Lockwood brass door range has evolved as the product of choice for leading Australian architects in commercial, institutional and industrial applications.

Application
Designed for use with the Lockwood Selector & Synergy Series Mortice Latches.


When using plate configurations that feature turns, a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.

What makes brass so good?
Still Australian designed and made, the Lockwood range has adapted as design trends have come and gone but one thing has remained constant - the high quality brass used to make it. Whether it is for aesthetics, ergonomics, functionality or durability brass remains the ideal material for high quality door furniture.

Brass is highly durable
Brass has a low friction surface which makes it ideal for connected moving parts. This is why it is the perfect choice for producing high use door furniture that will prove durable with minimal servicing. Lockwood brass door furniture has been successfully tested to exceed the highest durability rating (D8, 500,000 cycles) under the Australian Standard (AS4145.2: 2008).

Brass is corrosion resistant
Brass door furniture provides durable performance in high corrosion applications. Unlike other commonly used materials it contains no iron so it will not rust or tea stain in high corrosion environments. Lockwood Brass Door Furniture in satin chrome brushed finish (SC) has been successfully tested under NATA conditions to maintain both function and finish under prolonged neutral salt spray test for over 1000 hours satisfying the highest ranking (C10) of the appropriate Australian Standard (AS4145.2: 2008). This result confirms that Lockwood Brass Door Furniture the ideal choice for use in coastal applications and other corrosive environments.

Brass is green
Brass is a highly machinable material making it able to be accurately manufactured with less scrap, less rework and less energy than other materials. Products made from brass generally have good "cradle-to-grave" characteristics as not only do they show good durability but brass is also readily recycled at the end of the products working life. Furthermore Lockwood Brass Door Furniture is manufactured right here in Australia so there is far less energy expended shipping product into the country and the manufacture occurs at ASSA ABLOY Australia's ISO 14001 accredited manufacturing facility.

Trade Pack
DescriptionPart Number
External Plate with Cyl Hole (Con. Fix), No Lever1800SC
Internal Plate with Cyl Hole (Vis. Fix), No Lever1900SC
External Plate with Cyl Hole (Con. Fix), Solid Brass Lever1801/70SC
Internal Plate with Cyl Hole (Vis. Fix), Solid Brass Lever1901/70SC
External Plate with Emergency Turn (Con. Fix), No Lever1802SC
External Plate with Emergency Turn (Con. Fix), Solid Brass Lever1803/70SC
External Plate with Oval T/Knob (Con. Fix), Solid Brass Lever1804/70SC
Internal Plate With Oval T/Knob (Vis. Fix), Solid Brass Lever1904/70SC
External Plain Plate (Con. Fix), Solid Brass Lever1805/70SC
Internal Plain Plate (Vis. Fix), Solid Brass Lever1905/70SC
External Plate with Oval T/Knob (Con. Fix), No Lever1806SC
Internal Plate With Oval T/Knob (Vis. Fix), No Lever1906SC
External Plain Plate (Con. Fix), No Lever1807SC
Internal Plain Plate (Vis. Fix), No Lever1907SC
External Plate with Cyl Hole (Con. Fix), Fixed Lever1808/70SC
Internal Plate with Cyl Hole (Vis. Fix), Fixed Lever1908/70SC
External Plate (Con. Fix), Fixed Lever1809/70SC
Internal Plate (Vis. Fix), Fixed Lever1909/70SC
External Plate with Two Cyl Holes (Con. Fix)1810SC
Ext. Plate with Privacy Indicator Emergency Turn (Con. Fix), No Lever1813SC
Ext. Plate with Privacy Indicator Emergency T/ Knob (Con. Fix), Solid Brass Lever1814/70SC
Ext. Plate with Privacy Indicator Oval T/Knob Con. Fix), No Lever1815SC
Ext. Plate with Privacy Indicator Oval Turn (Con. Fix), Solid Brass Lever1816/70SC
External Plate With Cyl Hole & L.E.D (Con. Fix), Solid Brass Lever1820/70SC
Internal Plate With Cyl Hole & L.E.D (Vis. Fix), Solid Brass Lever1920/70SC
External Plate with Cyl Hole & L.E.D (Con. Fix), Fixed Lever1821/70SC
Internal Plate with Cyl Hole & L.E.D (Vis. Fix), Fixed Lever1921/70SC
External Plate with L.E.D (Con. Fix), Solid Brass Lever1822/70SC
Internal Plate with L.E.D (Vis. Fix), Solid Brass Lever1922/70SC
External Plate with L.E.D (Con. Fix), No Lever1823SC
Internal Plate with Disabled Turn (Vis. Fix), Solid Brass Lever - Suits Selector1939S/70LSC
Internal Plate with Disabled Turn (Vis. Fix), Solid Brass Lever - Suits Synergy1939/70LSC
Internal Plate with Privacy Indicating Disabled Turn (Vis. Fix), Solid Brass Lever - Suits Selector1941S/70LSC
Internal Plate with Privacy Indicating Disabled Turn (Vis. Fix), Solid Brass Lever - Suits Synergy1941/70LSC

Note: Items shown above are in Satin Chrome Brushed Finish (SC). For alternative finish substitute SC for appropriate finish.

Note: For items above featuring levers, the 70 Lever has been shown. For alternative lever substitute 70 for appropriate lever number.

Handing

Plates are not handed; Symmetrical levers may be reversed by removing stop screw.

Fixing
Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Door Thickness
External plates are supplied with fixing screws to suit door thickness between 32 and 50mm.

Finishes

Standard

  • Satin Chrome Brushed SC

Non Standard

  • Chrome Plate CP
  • Polished Brass PB
  • Polyester Powdercoat PPC

Other finishes on application.

Dimensions

LOCKWOOD 2800 SERIES ROUND END PLATE FURNITURE

Style and versatility are combined in this range which comprises four architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application.

Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice.

The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the Lockwood brass door range has evolved as the product of choice for leading Australian architects in commercial, institutional and industrial applications.

Application
Designed for use with the Lockwood Selector & Synergy Series Mortice Latches. When using plate configurations that feature turns, a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.

What makes brass so good?
Still Australian designed and made, the Lockwood range has adapted as design trends have come and gone but one thing has remained constant - the high quality brass used to make it. Whether it is for aesthetics, ergonomics, functionality or durability brass remains the ideal material for high quality door furniture.

Brass is highly durable
Brass has a low friction surface which makes it ideal for connected moving parts. This is why it is the perfect choice for producing high use door furniture that will prove durable with minimal servicing. Lockwood brass door furniture has been successfully tested to exceed the highest durability rating (D8, 500,000 cycles) under the Australian Standard (AS4145.2: 2008).

Brass is corrosion resistant
Brass door furniture provides durable performance in high corrosion applications. Unlike other commonly used materials it contains no iron so it will not rust or tea stain in high corrosion environments. Lockwood Brass Door Furniture in satin chrome brushed finish (SC) has been successfully tested under NATA conditions to maintain both function and finish under prolonged neutral salt spray test for over 1000 hours satisfying the highest ranking (C10) of the appropriate Australian Standard (AS4145.2: 2008). This result confirms that Lockwood Brass Door Furniture the ideal choice for use in coastal applications and other corrosive environments.

Brass is green
Brass is a highly machinable material making it able to be accurately manufactured with less scrap, less rework and less energy than other materials. Products made from brass generally have good "cradle-to-grave" characteristics as not only do they show good durability but brass is also readily recycled at the end of the products working life. Furthermore Lockwood Brass Door Furniture is manufactured right here in Australia so there is far less energy expended shipping product into the country and the manufacture occurs at ASSA ABLOY Australia's ISO 14001 accredited manufacturing facility.

Trade Pack
DescriptionPart Number
External Plate with Cyl Hole (Con. Fix), No Lever2800SC
Internal Plate with Cyl Hole (Vis. Fix), No Lever2900SC
External Plate with Cyl Hole (Con. Fix), Solid Brass Lever2801/70SC
Internal Plate with Cyl Hole (Vis. Fix), Solid Brass Lever2901/70SC
External Plate with Emergency Turn (Con. Fix), No Lever2802SC
External Plate with Emergency Turn (Con. Fix), Solid Brass Lever2803/70SC
External Plate with Oval T/Knob (Con. Fix), Solid Brass Lever2804/70SC
Internal Plate With Oval T/Knob (Vis. Fix), Solid Brass Lever2904/70SC
External Plain Plate (Con. Fix), Solid Brass Lever2805/70SC
Internal Plain Plate (Vis. Fix), Solid Brass Lever2905/70SC
External Plate with Oval T/Knob (Con. Fix), No Lever2806SC
Internal Plate With Oval T/Knob (Vis. Fix), No Lever2906SC
External Plain Plate (Con. Fix), No Lever2807SC
Internal Plain Plate (Vis. Fix), No Lever2907SC
External Plate with Cyl Hole (Con. Fix), Fixed Lever2808/70SC
Internal Plate with Cyl Hole (Vis. Fix), Fixed Lever2908/70SC
External Plate (Con. Fix), Fixed Lever2809/70SC
Internal Plate (Vis. Fix), Fixed Lever2909/70SC
External Plate with Two Cyl Holes (Con. Fix)2810SC
Ext. Plate with Privacy Indicator Emergency Turn (Con. Fix), No Lever2813SC
Ext. Plate with Privacy Indicator Emergency T/ Knob (Con. Fix), Solid Brass Lever2814/70SC
Ext. Plate with Privacy Indicator Oval T/Knob Con. Fix), No Lever2815SC
Ext. Plate with Privacy Indicator Oval Turn (Con. Fix), Solid Brass Lever2816/70SC
External Plate With Cyl Hole & L.E.D (Con. Fix), Solid Brass Lever2820/70SC
Internal Plate With Cyl Hole & L.E.D (Vis. Fix), Solid Brass Lever2920/70SC
External Plate with Cyl Hole & L.E.D (Con. Fix), Fixed Lever2821/70SC
Internal Plate with Cyl Hole & L.E.D (Vis. Fix), Fixed Lever2921/70SC
External Plate with L.E.D (Con. Fix), Solid Brass Lever2822/70SC
Internal Plate with L.E.D (Vis. Fix), Solid Brass Lever2922/70SC
External Plate with L.E.D (Con. Fix), No Lever2823SC
Internal Plate with Disabled Turn (Vis Fix), Solid Brass Lever - Suits Selector2939S/70LSC
Internal Plate with Disabled Turn (Vis. Fix), Solid Brass Lever - Suits Synergy2939/70LSC
Internal Plate with Privacy Indicating Disabled Turn (Vis. Fix), Solid Brass Lever - Suits Selector2941S/70LSC
Internal Plate with Privacy Indicating Disabled Turn (Vis. Fix), Solid Brass Lever - Suits Synergy2941/70LSC
