LOCKWOOD MORTICE LOCKS

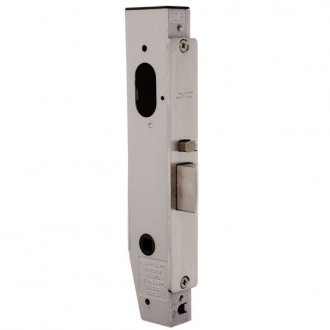

LOCKWOOD PRIMARY LOCK 3582 SC (METAL)

3582SC

Lockwood Synergy® 3582 series short backset mortice lock.

Suitable for for commercial shop front doors.

For dimensions see FAQs

Features

  • 23 mm backset.
  • Operated by key or handle outside or by turnsnib, key or handle inside.
  • Cylinder or handle retracts the latch.
  • Suits door thickness 32-50 mm.
  • 15 mm stainless steel reversible latchbolt.
  • Easily adapted to most function.
  • Supplied less cylinder.
  • Compatible to most restricted keying systems.
  • Electric strike compatibility.
  • 25.4 mm, 30 mm and 38 mm backsets also available.
  • Finished in satin chrome.

FAQs

3582 Dimensions

Measurements in mm

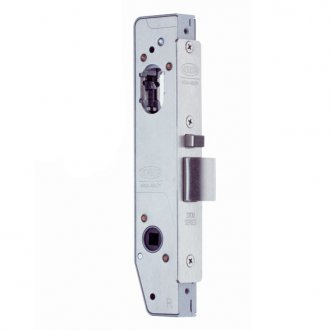

LOCKWOOD 3782 UNIVERSAL PRIMARY LOCK 23mm BACKSET

3782SS

Lockwood Selector® 3782 universal mortice lock.

The new Selector® 3780 series mortice lock was designed to incorporate a greater range of lock functions into one primary lock.
In addition to industry first holdback capable lock, the Selector® 3780 series also includes an selectable anti-lockout feature.

All handing setting (Passage, Combination or Escape) can be adjusted via the hub selector located under the face plate.

For dimensions and handing see FAQs

Features

  • Short backset universal primary mortice lock.
  • Easy Red /Green function setting.
  • All lock settings are made from under the faceplate allowing for simple in-door configuration.
  • Standard primary locks include holdback and anti-lockout capabilities.
  • Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected.
  • Operated by key or handle outside or by turnsnib, key or handle inside.
  • Zinc diecast body with stainless steel chassis plates for improved strength.
  • Electric Strike compatibility.
  • 23 mm backset as standard, 25.4, 30 and 38 mm available upon request.
  • Suits metal door thickness 35-50 mm.
  • 15 mm stainless steel reversible latch bolt.
  • Supplied less cylinder.
  • Supplied with Selector® 'V' cam.
  • Compatible to most restricted keying systems.
  • Finished in stainless steel.

FAQs

3782 Dimensions

Measurements in mm

3780 Handing

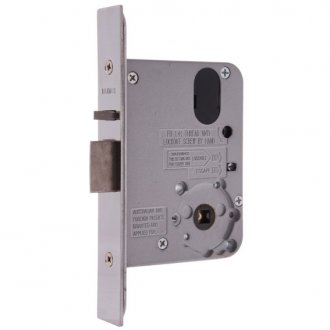

LOCKWOOD PRIMARY LOCK 3572 SC TIMBER

3572SC



Lockwood Synergy® 3572 Series vestibule lock.

Ideal for commercial applications.

Fire rated to 4 hours.

For dimensions see FAQs

Features

  • Vestibule function primary mortice lock.
  • Operated by key or handle outside or by turnsnib, key or handle inside.
  • Can be set to escape or lockable function on either side of lock.
  • 60 mm backset as standard, 89 mm and 127 mm available upon request.
  • Suits door thickness 32-50 mm.
  • 15 mm stainless steel reversible latch bolt.
  • Easily adapted to any function (except 3572XA).
  • Supplied less cylinder.
  • Compatible to most restricted keying systems.
  • Finished in satin chrome.

FAQs

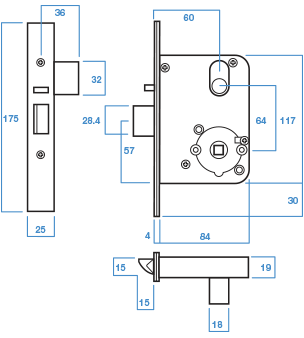

3572 Dimensions

Measurements in mm
