Panic Exit Devices

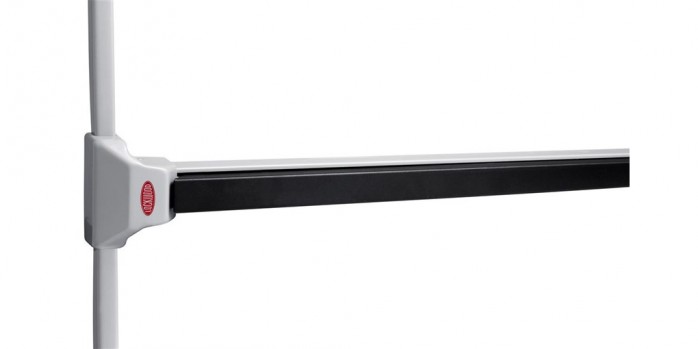

9300 LOCKWOOD PANIC EXIT DEVICE

The Lockwood 9300/9400 Electromechanical Vertical Type Panic Exit Device is designed for locking of emergency exits in accordance with BCA Standards D2 -21 (d) for Egress, Fire and Safety Regulations for Public Buildings. Provides a ready means of escape at all times by the single action of pushing on a horizontal bar fitted across the full width of a door.

Features of the 9300/9400 Series Electromechanical Vertical Type Panic Exit Device
  • Suitable for single and double door applications of 900 or 1200mm width doors
  • 9300/9400 adjustable on site
  • 9800 factory made to order
Door Height

Standard maximum height up to 2300mm, extension to 3000mm.

Installed with centre line of exit device at 1023mm above finished floor level.

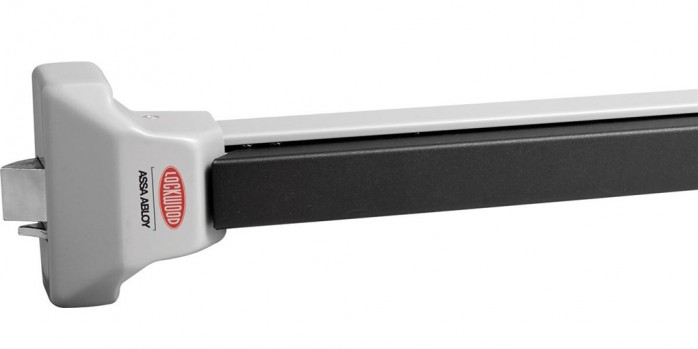

The basic 9000 Series Horizontal Panic Exit Device is suitable for timber, metal and security glass doors with mid rail.

All functions are reversible and non-handed.

Deadlatching on all bolts.

Door Stile

Suitable for both 90° and flush head door stiles minimum head clearance requirement of 30mm.

Automatic top and bottom latches.
Pick resistant bottom latch.

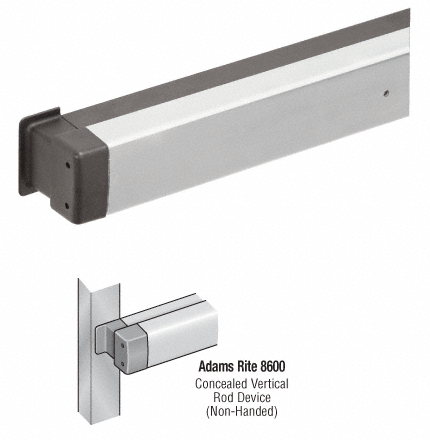

8600 SERIES ADAM'S RITE PANIC BARS

Features:

  • Patented top latching mechanism interlocks door to frame
• Strong, durable construction for a high level of security
• Adjustable steel rods protected in contoured covers
• Easy to install
• Clean, unobtrusive design

Specifications:

8600 Series Certifications:
• UL 305 Panic Hardware
• ANSI/BHMA A156.3 Grade 1
• California State Fire Marshall
• New York City MEA*

*Consult Factory for specific number

Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.

Handing: Device is non-handed. Lever Entry Trim is field reversible.

Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.

Bar Height: Standard model adjusts from 30” to 44”.

Door Height: Standard unit adjustable for doors up to 66” above the selected bar height. For doors over 66” above bar height, up to 10 ft use 8655 Tall Door Kit.

Door Thickness: Suits 1-3/4” standard, up to 2-1/4”. Device requires modification when used with cylinder in doors over 1-3/4”.

Stile Width: Minimum 2” Stile. Fits narrow, medium, and wide stile aluminum doors.

Stile Wall: Doors with stile walls other than 1/8” require modification.

Projection: 2-5/8” when fully projected, 1-5/8”when dogged.

Dogging: Standard dogging with hex key or cylinder dogging option. Electric dogging also available.

Fasteners: Standard self-tapping screws.

Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.

Cylinder x Fixed Pull: (Function 03): Accepts any standard mortise cylinder with MS® cam.

3080 Entry Trim (Functions 08, 09): Accepts any standard diameter mortise cylinder with MS® cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately).

Warranty: Five year limited.

Bolts and Strikes: The patented top latching mechanism utilizes a rotating top bolt which deadlatches around the header strike, interlocking the door to the frame. Supplied with standard header strike. The hexagonal, hardened steel bottom bolt is shielded in a cast housing for strength and stability.

Options and Accessories:
Silent Electrification Motorized Latch Retraction: The SE Motorized Latch Retraction option provides near-silent operation for quiet environments such as hospitals, offices, hotels, and libraries where solenoid-driven devices would be disruptive.

Electric Latch Retraction: The LR option uses a solenoid mounted in the pushbar for instantaneous unlocking and locking of the exit device from a remote location or access control device. LR option is not available on rim type exit devices (see EL option).

Alarmed Exit Device: This battery-operated option emits a loud (95 decibel) alarm to notify management of unauthorized exit. Available on minimum opening width 36". Cannot be ordered with other exit device options.

Request to Exit (REX) – Monitor / Signal Switch: Mounted in the exit device pushbar on the hinge end, the switch can be used to activate signal light, horn, monitor, or other devices.

Cylinder Dogging: For management control of dogging exit devices for life-safety exit devices only.

Electric Dogging: A holding magnet keeps the pushbar depressed (set manually) and the latch retracted for lower profile exit devices, resulting in less damage and quieter operation.

Matching End Caps: Matching end caps are available for applications where it is preferable that the end caps match the finish of the exit device. Available for US finishes only.

Available Finishes: 313 Dark Bronze Anodized, 335 Black Anodized, 628 Clear Anodized, US3 Bright Brass, US4 Satin Brass, US32 Bright Stainless, US32D Satin Stainless.

 For more information on any of the options and accessories listed above please see Options & Accessories for Exit Devices.

AR8611 ALClear Anodise    - Order 36" or 48"
AR8622 BRBronze Anodise - Order 36" or 48"
AR8655Tall Door Kit to suit 2700mm high door
AR8650-01Cylinder Escutcheon for 8600 series Silver/Bronze
AR4036Cylinder - Lockwood or Yale

BRITON PANIC EXIT DEVICES

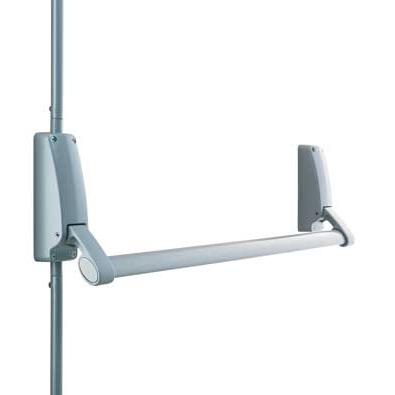

Briton Panic Bar 376E Single Panic Bolt

Two point locking for extra security.

Features:
  • Vertical panic bolt device.
  • Suitable for doors up to 1300 mm wide and 2500 mm high.
  • Optional extended top rod for doors to 3350mm.
  • Reversible with two point locking.
  • Suitable for single and double door applications.
  • Non-handed - suitable for both left and right handed doors.
  • For rebated doors, a minimum stile width of 78 mm is required for 13 mm rebates and 90 mm for 25 mm rebates.
  • Not suitable for fire doors.
  • Anti-thrust device is also standard with the 376E to prevent unauthorised retraction of the latchbolt.
  • Adjustable top and bottom shoots along with an easy clean socket.
  • Provides security against unauthorised entry.
Briton 377SE Push Bar - Rim Latch/Vertical Panic Bolt

For double rebated doors - comprises 376, 378 & 378DDS.



Fire Rated to 2 hours on a timber door

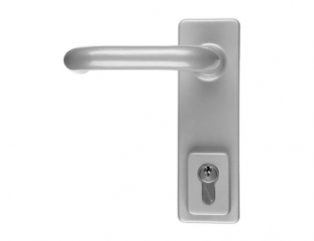

Compatible Outside Access Devices (OAD)

The Briton 376 Series of escape hardware consists of a vertical panic bolt, rim panic latch and a mortice night latch operator. Each product is operated by a horizontal push bar which, when pushed in a downward arc, withdraws either the bolts or the latch, releasing the door for immediate escape in the event of an emergency.

B376ESingle Panic Device
B376DSingle Panic Device - with Dogging

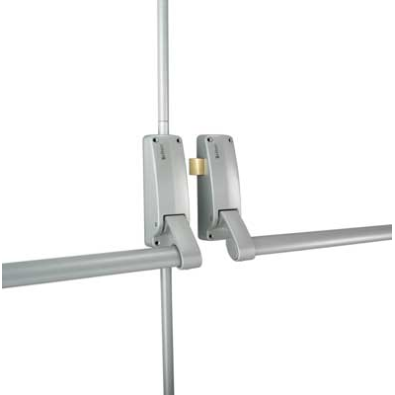

B377MDouble Panic Device
B377DDouble Panic Device - with Dogging

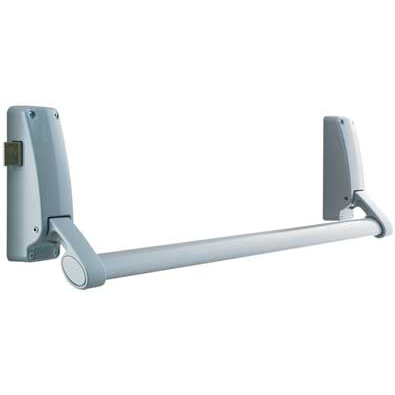

B378E

B378D

Single Panic Device

Single Panic Device – with Dogging

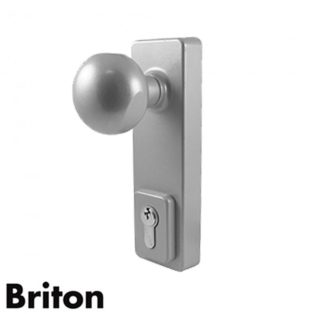

B1413E/KCylinder Furniture for Locking with Cylinder
BDDSDouble Door Strike
