Window & Door Security Products

ES2000 ELECTRIC STRIKE



The ES2000 series electric strikes are fully monitored high security products manufactured from stainless steel and designed for use with all access control systems. The strikes are suitable for use with hinged doors which require either fire or security control as part of a building management system.

These strikes are flexible and can be changed from fail safe to fail secure, mounted on the left or right hand side of the door and are available in 12Vdc.

They offer a strong, dependable and long-lasting electric strike solution with a 850kg holding force and endurance rating of 1 million cycles.

Key Features

  • Fully monitored - strike locked and door latched
  • Fail safe/fail secure changeable on site
  • High security
  • 4 Hour fire rating
  • 850kg holding force
  • 1 million cycles endurance rating
  • Cast stainless steel body
  • Stainless steel locking pins
  • SCEC Endorsed
  • Low Current consumption - Max 175ma @12Vdc
  • Solenoid rated for continuous use
  • Mounting kit supplied as standard
  • TRICARE® 5 Year Warranty

Applications

  • High traffic areas
  • Fire rated door sets
  • Open in/open out doors
  • Suitable for use with all access control systems

Standards and Compliance

  • S3 (Security) Australian Lock Standard (AS4145.2.1993)
  • D3 (Durability) Australian Lock Standard (AS4145.2.1993)
  • BS 5872 Approved
  • Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1.2005 (Part 1: Fire resistant door sets)
  • Approved to UL1034 (highest level)
  • CE Approved
  • C-Tick Certified
  • SCEC endorsed for secure areas

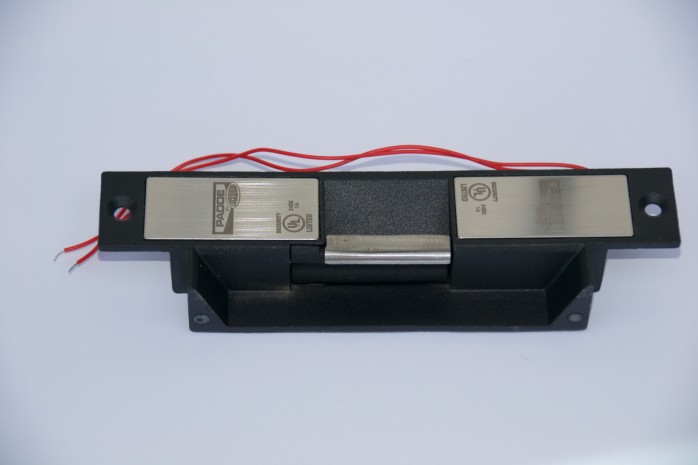

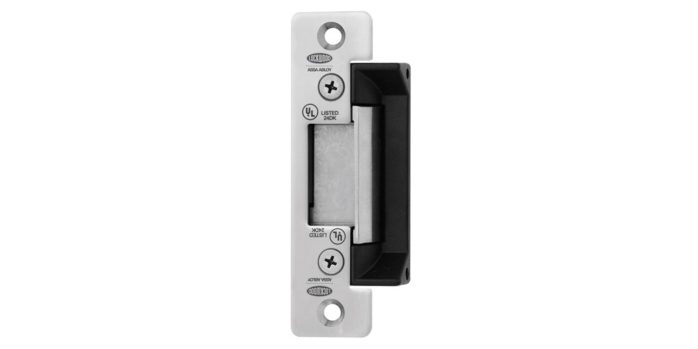

ES100 ELECTRIC STRIKE



The ES110 is a cost efficient robust electric strike with a solid construction of one-piece cast aluminium body and stainless steel striker. Having a deeper than normal strike-keeper area, ES110 is designed to work with an extensive range of locks and offers the same level of security and reliability usually provided by more expensive electric locking solutions.

Extension lips are available to accommodate the installation of electric strikes on door frames with different thickness. The ES110 product range of patented electric strikes are suitable for use with all access control installations where flexibility, security and lower cost are required.

Key Features

  • All models IP56 Weather resistant
  • Fail safe/fail secure changeable on site
  • Stainless steel striker for extra strength and durability
  • Stainless steel locking pins
  • Available in 12 or 24Vdc
  • Optional mounting kit
  • Installation template
  • Suitable For 18mm latch with a 3mm door gap
  • TRICARE® 5 Year Warranty

Applications

  • Exposed areas
  • High traffic areas
  • Open in/open out doors
  • Suitable for use with all access control systems

Standards and Compliance

  • Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1.2005 (Part 1: Fire resistant door sets)
  • Approved to UL1034 (highest level)
  • CE Approved
  • C-Tick Certified
  • Weather Resistant (IP56)

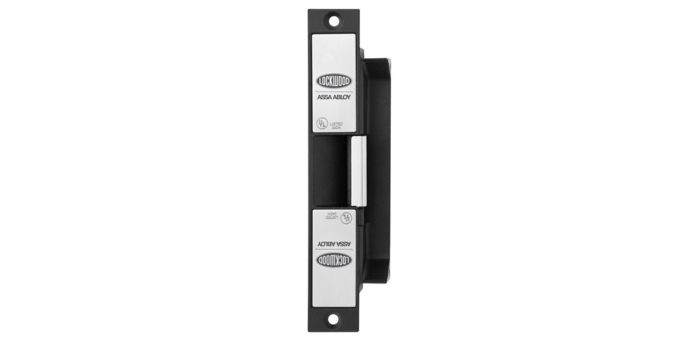

ES200 ELECTRIC STRIKE



The ES200 series electric strikes are high security products manufactured from stainless steel and designed for use with all access control systems. The strikes are suitable for use with hinged doors which require either fire or security control as part of a building management system.

These strikes are flexible and can be changed from fail safe to fail secure, mounted on the left or right hand side of the door and are available in 12 or 24Vdc.

They offer a strong, dependable and long-lasting electric strike solution.

Key Features

  • Fail safe/fail secure changeable on site
  • High security
  • 4 Hour fire rating
  • 850kg holding force
  • 1 million cycles endurance rating
  • Cast stainless steel body
  • Stainless steel locking pins
  • Low Current consumption - Max 175mA @12Vdc
  • Mounting kit supplied as standard
  • TRICARE® 5 Year Warranty

Applications

  • High traffic areas
  • Fire rated door sets
  • Open in/open out doors
  • Suitable for use with all access control systems

Standards and Compliance

  • S3 (Security) Australian Lock Standard (AS4145.2.1993)
  • D3 (Durability) Australian Lock Standard (AS4145.2.1993)
  • BS 5872 Approved
  • Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)
  • Approved to UL1034 (highest level)
  • CE Approved
  • C-Tick Certified

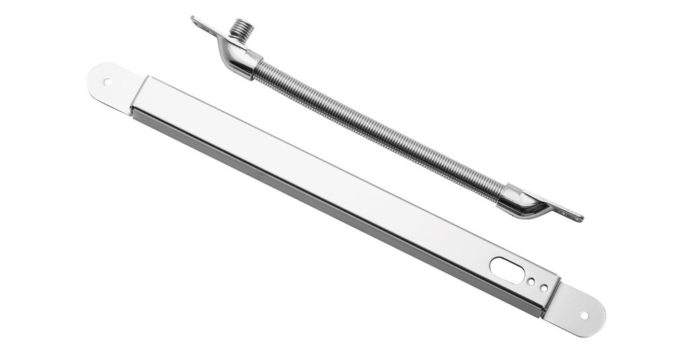

LW8810 POWER TRANSFER DEVICE



LC8810
The LC8810 and LC8811 Power Transfer Lead Covers are designed to ensure unbroken transfer of wires between door and frame in electric locking situations.

Features

  • Provides unbroken connection from controller to lock, for cable up to 8mm in diameter
  • Vandal-resistant chrome plated steel flexible.
  • Completely concealed when the door is closed.

Applications

LC8810

The LC8810 is a shorter unit suitable for hinged doors which open to 90° (maximum of 120°).

LC8811
The LC8811 is designed for use on doors which open more than 120°, or have a gap from pin hinge to door frame of more than 20 mm. NB. Not suitable for centrally pivoted doors.

Standards and Compliance
Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005
(Part 1: Fire resistant door sets)

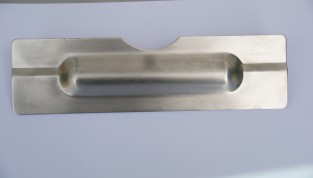

OWSS-088 SECURITY SHEILD



To suit Cylindrical Locks & Deadbolts

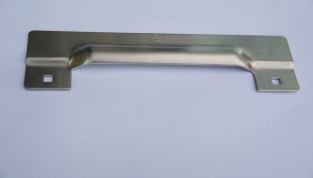

OWSS-092N SECURITY SHEILD



To suit Narrow Style Mortice Locks

These are handed Left & Right

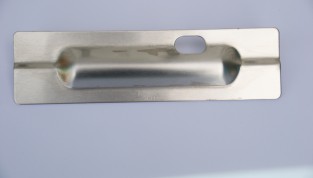

OWBP SECURITY SHEILD

Lock Blocker Plate to suit Lever Locks

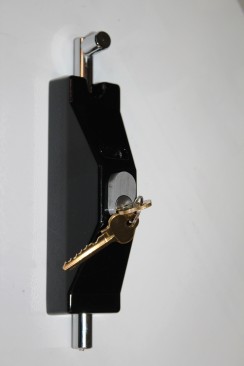

OW5004 LOCKABLE BOLT

Available in Black & SCP

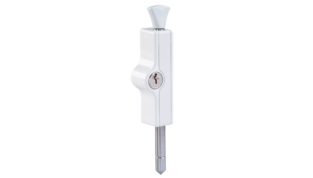

W-22063 PATIO BOLTS

Premium high security CYL4® Patio Bolt with concealed fixing.

Features of the CYL4 Patio Bolt
  • CYL4 One Key Security - Can be matched to most door locks for one key convenience
  • High security, robust construction, resists attack
  • Solid zinc diecast metal body
  • Concealed fixing for security and style
  • Key to lock, key to unlock
  • Strong 9.5mm steel bolt
  • 49mm bolt extension
  • Bolt engages without locking for safety
  • Reversible bolt for left or right handed installation
  • Stainless steel ferrule for timber applications
  • Allows door to be bolted in closed or venting positions - (Sliding door applications)
  • Flat steel keeper for use when bolt doesn't engage door frame
  • Extended (78mm bolt extension) versions available
  • Single and Twin Keyed alike display packs available
  • Available in Display or Trade Pack

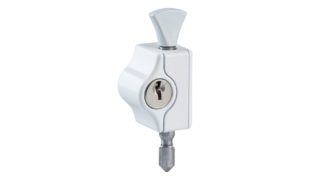

W222301 MINI WINDOW BOLT



High security CYL4® compact window bolt with concealed fixing.

Suitable for sliding, casement, awning and double hung timber windows.

Features of the CYL4 Mini Window Bolt
  • CYL4 One Key Security - Can be matched to most door locks for one key convenience
  • High security, robust construction, resists attack
  • Concealed fixing for security and style
  • Key to lock, key to unlock
  • Strong 8mm steel bolt
  • Bolt engages without locking for safety
  • Enables a secure ventilation position (sliding and double hung windows)
  • Reversible bolt for left or right handed installation
  • Solid zinc diecast metal body
  • Stainless steel ferrule for timber applications
  • Suits a wide variety of applications

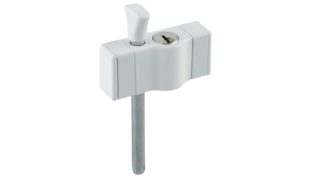

W220531 MULTI BOLT

High security CYL4® Multibolt window lock with concealed fixing.

Suitable for sliding, casement, awning and double hung timber and aluminium windows.

Features of the CYL4 Multi Bolt
  • CYL4 One Key Security - Can be matched to most door locks for one key convenience
  • High security, robust construction, resists attack
  • Concealed fixing for security and style
  • Versatile face fix or side fix design
  • Key to lock, key to unlock
  • Suits a wide variety of applications
  • Enables fixed ventilation - (Sliding & Double Hung applications)
  • Standard and one way fixing screws supplied
  • Stainless steel ferrule for timber applications
  • Ideal for double hung windows
  • Strong 8mm steel bolts provided
  • 3 bolt types supplied
  • Solid zinc diecast metal body

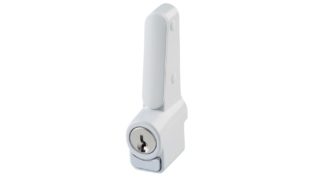

W22013 SLIDING WINDOW LOCK

High security CYL4® sliding window lock with concealed fixing.

Suitable for sliding aluminum windows.

Features of the CYL4 Push Lock
  • CYL4 One Key Security - Can be matched to most door locks for one key convenience
  • High security, robust construction, resists attack
  • Added security for sliding windows
  • Solid zinc diecast metal body
  • Simply push button to lock
  • Enables fixed ventilation
  • Standard and one way fixing screws supplied
  • Concealed fixing for security and style
  • 2 drilling jigs included
  • Side fix packer / jig
  • Installation kit included for front and side fixing

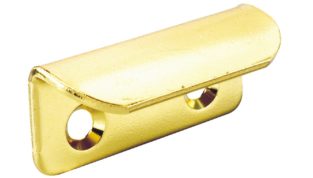

W4102 SASH LIFT

Durable metal finger grip lift for double hung window sashes.

Features of the Sash Lift
  • Steel construction
  • Small and durable
  • Easily fitted
  • Packed with fastening screws

Available in Trade Pack Only.

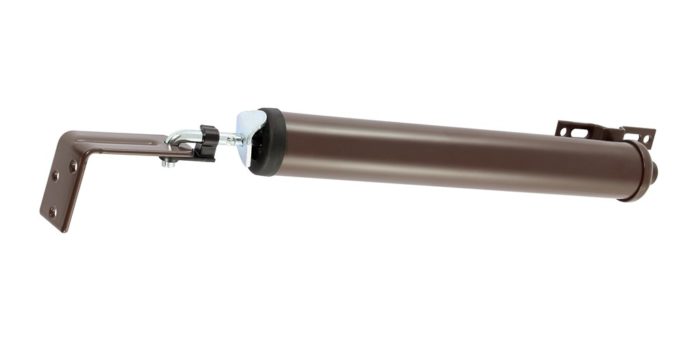

W8107 HINGED SECURITY DOOR CLOSER

Surface mounted door closer for use on hinged screen and security screen doors.

Features of the Screen Door Closer
  • Smooth pneumatic operation
  • Adjustable closing speed
  • Hold open bracket
  • Tough aluminium body
  • UV resistant ABS polymer
  • Durability tested beyond 50,000 cycles
  • Max opening angle 100Deg
  • Piston rod retainer bracket

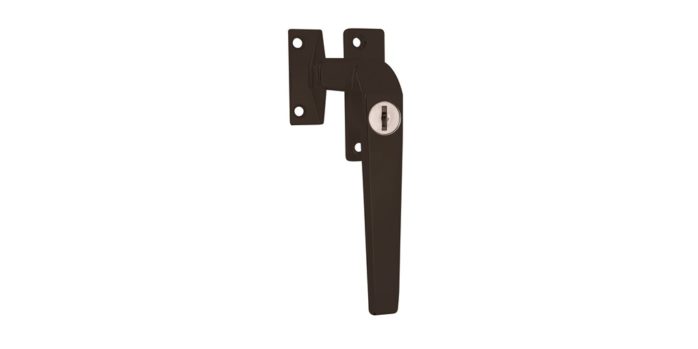

W2251 SERIES 25 LOCKABLE FASTENERS

Contemporary lockable window fastener. Provides handle, pull and lock for window.

Suitable for awning and casement aluminium or timber windows.

Features of the Series 25 Window Lock
  • Contemporary design
  • Both Lockable and Non-Lockable versions available
  • Positive fastening
  • Left hand or right hand versions available
  • Zinc diecast construction
  • Range of strikes available
  • Zinc diecast construction
  • Combination pull and fastener
  • Key to lock and unlock
  • Australian made with imported cylinder

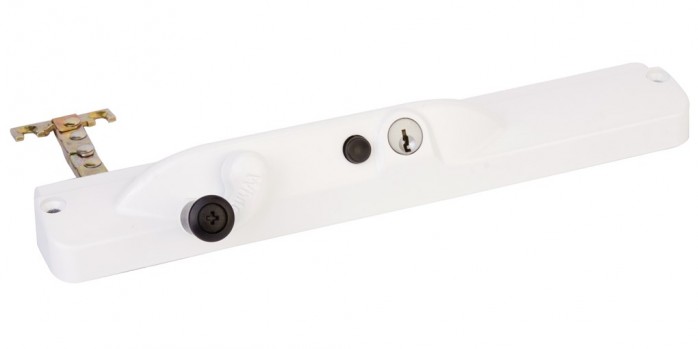

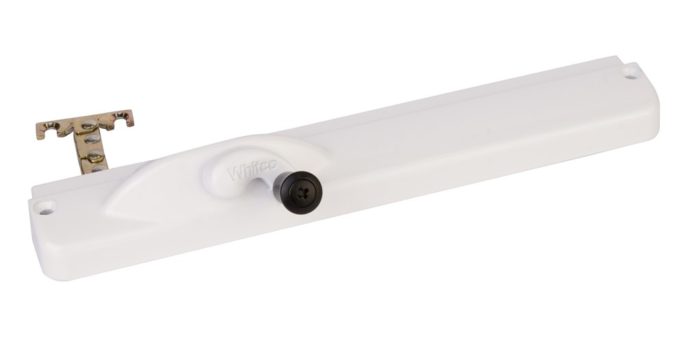

OW142 CHAINWINDER & OW143 LOCKABLE CHAINWINDER

Chain type operator for awning windows.

Features of the Whitco Standard Chainwinder
  • Suits aluminium or timber awning windows with butt or hook hinges, or non friction stays
  • Smooth operation
  • Through flyscreen operation
  • Maximum opening 300 mm, 19 handle turns to fully open
  • Foldable knob in handle reduces width preventing damage and interference with blinds
  • Restricted opening versions available.
  • Corrosion resistant version available with
  • Stainless Steel chain and Stainless Steel base plate
  • Retrofits existing MK7 and MK8 Whitco chainwinder models
  • Residential pack available with printed instructions on sealed poly bag
  • Restricted opening version can satisfy pool regulation requirement

Available in Trade Pack.

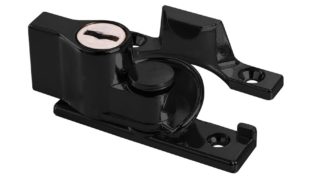

W2733 KEYED SASH LOCKS

Lockable swivel action double hung window lock.

Suitable for double hung aluminium and timber windows.

Features of the Keyed Sash Lock
  • Swivel type two way action
  • Key to lock and unlock
  • Optional one way screws
  • Range of keepers for timber and aluminium window applications
  • Standard 16 mm and wide 26 mm bases available
  • Australian made with imported cylinder

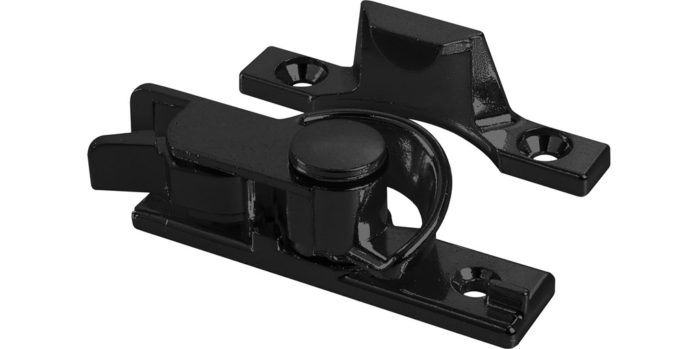

W2702 SASH LOCKS

Swivel action double hung window lock.

Suitable for double hung aluminium and timber windows.

Features of the Safety Sash Lock
  • Swivel type two way action
  • Self locking snib action - not key lockable
  • Range of keepers for timber and aluminum window application
  • Standard 16 mm and wide 26 mm bases available
  • Lockable version is also available
  • Australian made
