STAYS & CAM HANDLES

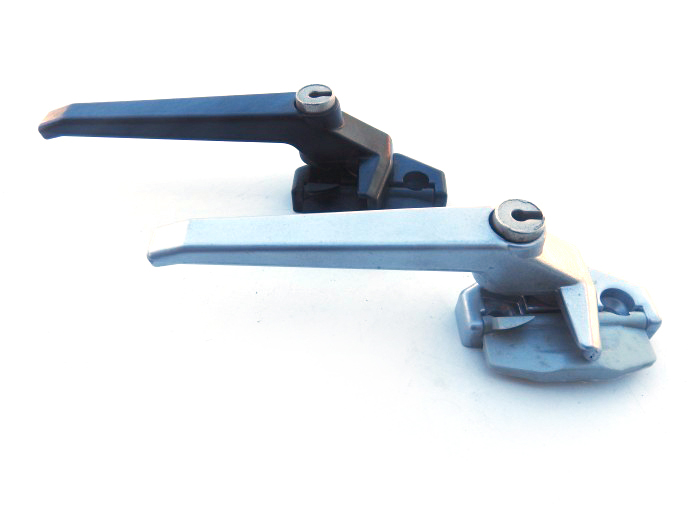

P-330 Wedgeless Cam Handle



This innovative quality window fastener from Yale is for use with aluminium or uPVC windows. This unique window fastener has the 'wedge' incorporated as a folding flap attached to the base of the handle.

Features

  • Elegant styling with smooth clean lines
  • High quality diecast body
  • Colour matched injection moulded nylon flap

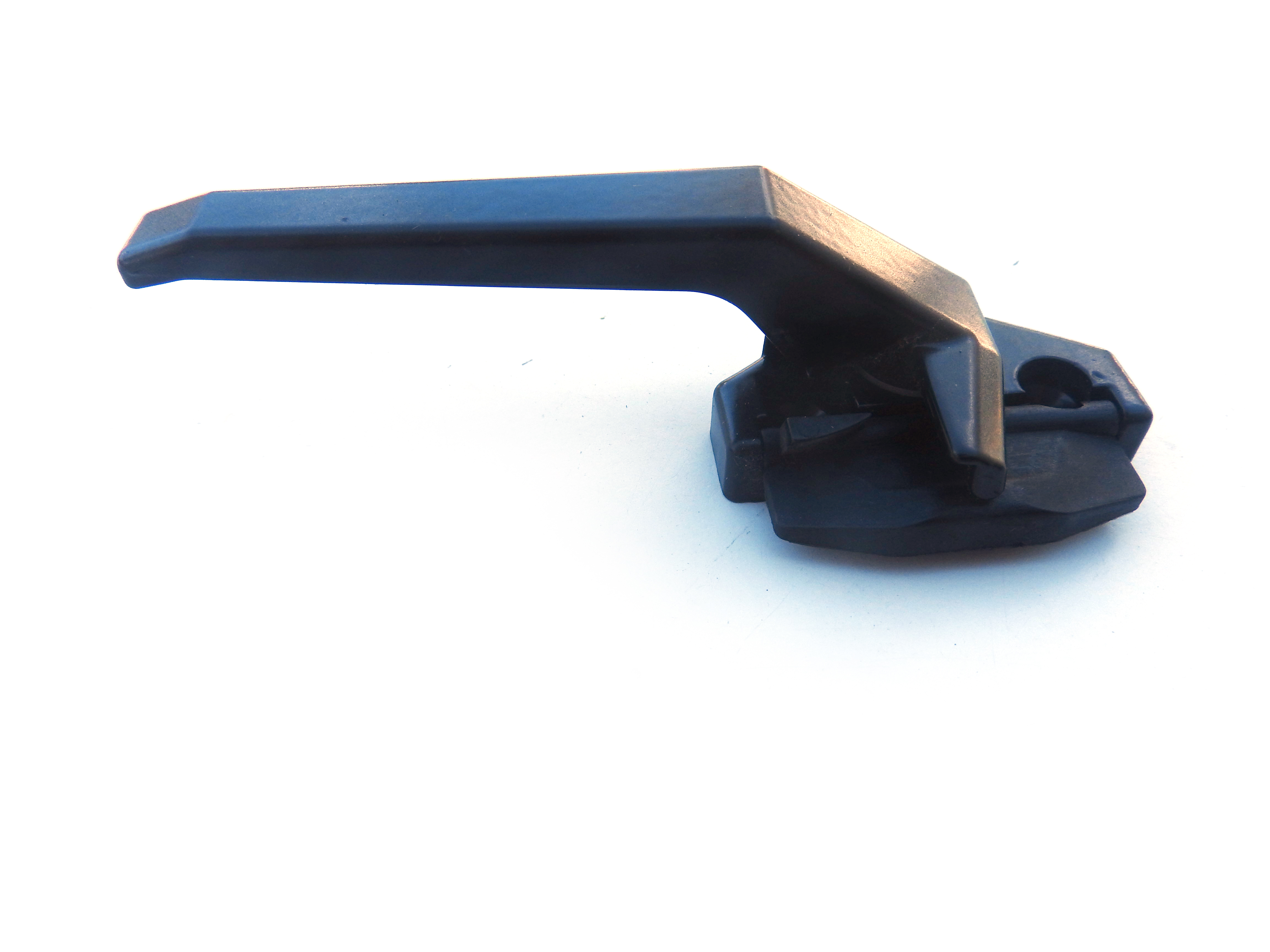

P-345 Lockable Wedgeless Cam Handles



This innovative quality window fastener from Yale is for use with aluminium or uPVC windows. Patented internationally, this unique window fastener has the 'wedge' incorporated as a folding flap attached to the base of the handle.

Features

  • Wedgeless Deluxe utilises a push button, cylinder locking option
  • High quality pressure die-cast main body with colour-matched injection moulded nylon flap
  • Contemporary styling consistant with the Wedgeless design

Options

Safetystay



The Safetystay is a non-releasable restrictor for awning and casement windows, for those with safety and security in mind. The restrictor provides safe ventilation and deters unlawful entry.

Features

  • The stainless steel scissor arm limits the opening to a maximum of 100mm when installed in the recommended position, guarding against injury caused by falling
  • Manufactured from non-corrosive 304 austenitic steel
  • Designed to be installed within a window cavity of 33mm width and ranging from 12mm to 15mm height
  • Can be screwed or riveted through the bearing eyelets for strong fixing
  • Restricts the sash opening in order to avoid interference with foot traffic in ground level or walk by situations
  • Safetystays provide a means for controlling open sashes in high windows or when restriction of large or heavy sashes is desired for safety reasons

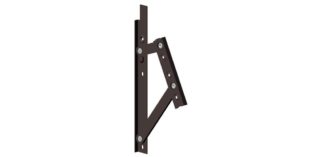

Interlock 4-B Series Friction Stays



A premier range of 4-bar friction hinges (stays) used for the support and frictional control of projecting top hung sashes. Manufactured from 304 grade austenitic stainless steel.

Features

  • A comprehensive range to cater for most applications.
  • Manufactured with the unique "pull in" feature.
  • No sliding channels.
  • Factory set friction levels mean no on-site adjustment is required.
  • Incorporates the Interlock patented frictional bearing.

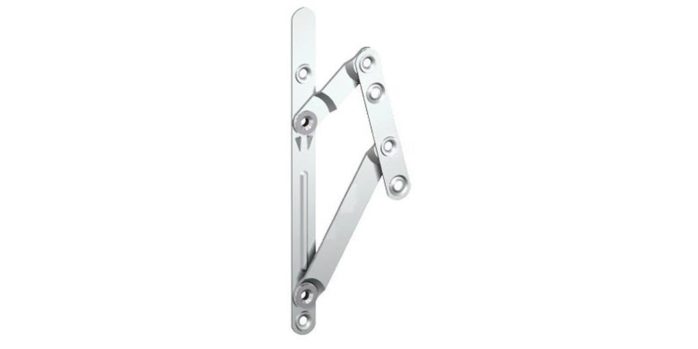

Interlock A-Series Friction Stays



A complete range of 4-bar friction stays manufactured from extruded Aluminium. Used for residential applications the A-Series has five sizes suitable for sashes up to 43kg.

Features

  • A comprehensive range to cater for most applications
  • Manufactured with the unique "pull-in" feature
  • No sliding channels
  • Factory set friction levels thus no on-site adjustment needed
  • Incorporates the patented Interlock friction bearing

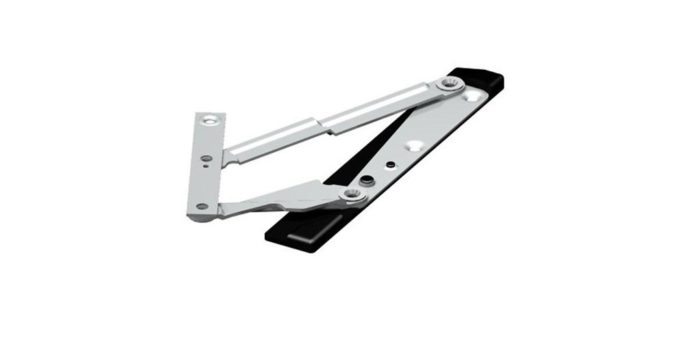

Interlock 4-BC Series Friction Stays



A premier range of 4-bar friction hinges (stays) used for the support and frictional control of projecting side hung sashes. Manufactured from 304 grade austenitic stainless steel.

Features

  • A comprehensive range to cater for most applications.
  • Manufactured with the unique "pull in" feature.
  • No sliding channels.
  • Factory set friction levels.
  • Incorporates the patented Interlock friction bearing.

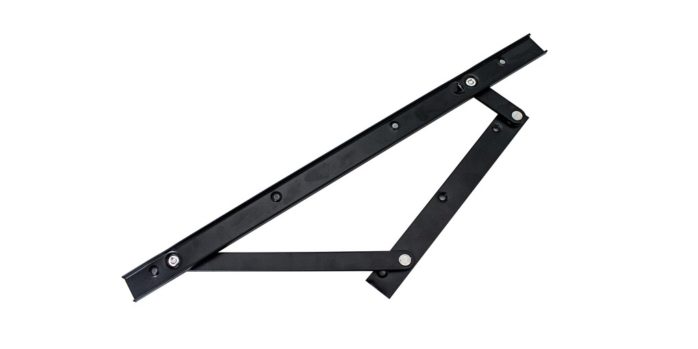

Interlock CHH Friction Stays



A complete range of 4-bar friction stays manufactured from extruded Aluminium. Used for residential applications, the CHH Stays have four sizes suitable for sashes up to 16kg.

Features

  • For retrofit applications
  • Manufactured with the unique "pull-in" feature
  • No sliding channels
  • Factory set friction levels thus no on-site adjustment needed
